CD8 Heated Shelf Stacks
CD8 Heated Shelf Stacks
Couldn't load pickup availability
Share
Expand the versatility of your CryoDry CD8 Freeze Dryer with genuine CryoDry Heated Shelf Stacks. Available in a range of configurations, these interchangeable heated shelf stacks allow you to optimise your freeze dryer for everything from tall vessels and laboratory samples to high capacity food production.
Manufactured from corrosion resistant stainless steel, each shelf stack delivers precise temperature control from freezing through to the final drying stage. The simple plug-and-play design makes changing shelf configurations quick and easy, allowing you to tailor your freeze dryer to suit every application.

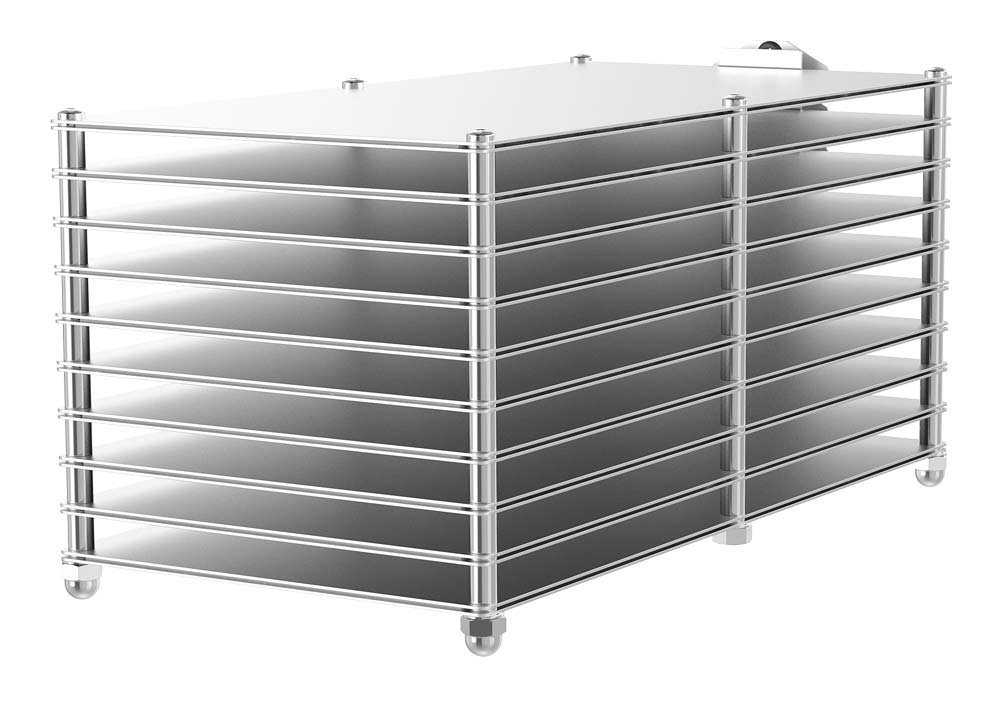

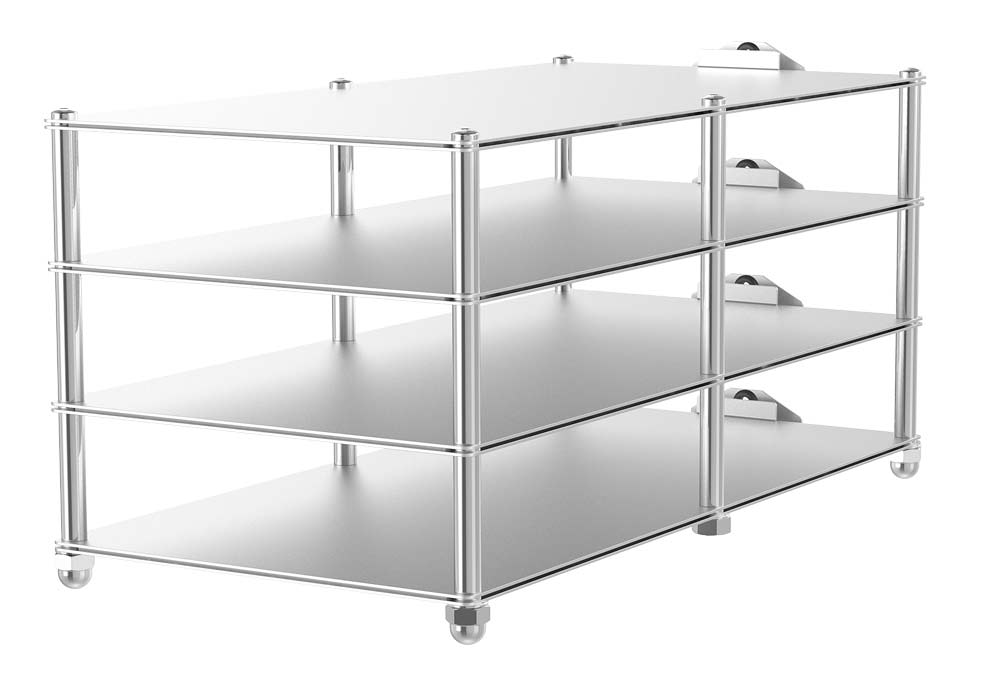

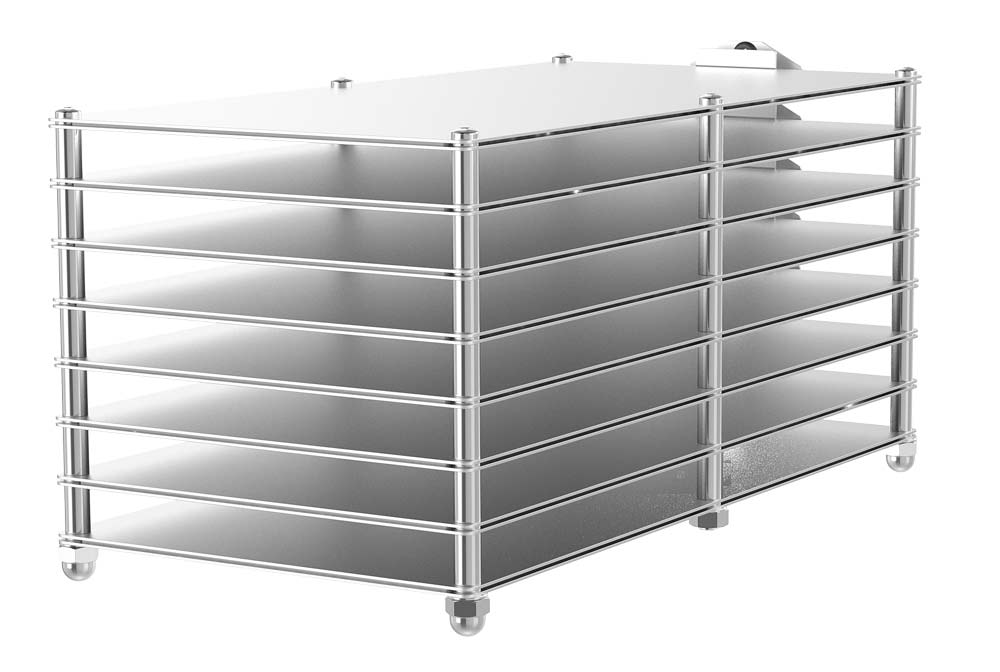

Available in 1 Shelf, 3 Shelf, 5 Shelf, 7 Shelf and 9 Shelf configurations.
FEATURES
- Genuine CryoDry CD8 heated shelf stacks
- Interchangeable plug-and-play design
- Durable stainless steel construction
- Precise temperature control from -40°C to +60°C
- Corrosion resistant and easy to clean
- Designed specifically for the CryoDry CD8 Freeze Dryer
- Suitable for food, pharmaceutical and laboratory applications
Please Note: Freeze dryer trays are not included and are sold separately.
SPECIFICATIONS
| Shelf Stack | Total Shelf Area | Shelf Spacing | Required Tray Size | Weight | Best For |
|---|---|---|---|---|---|
| 1 Shelf | 976 cm² | 204 mm | 20 mm Trays | 9 kg | Large vessels, flasks and tall containers |
| 3 Shelf | 2,928 cm² | 68 mm | 20 mm Trays | 12 kg | Larger products requiring extra clearance |
| 5 Shelf | 4,880 cm² | 40 mm | 20 mm Trays | 14.5 kg | Everyday freeze drying |
| 7 Shelf | 6,978 cm² | 28 mm | 15 mm Trays | 17 kg | Increased batch capacity |
| 9 Shelf | 8,784 cm² | 19 mm | 12 mm Trays | As per manufacturer | Maximum production capacity |
IMPORTANT NOTE
Important: Each shelf stack requires a different tray depth. Please ensure you select the correct freeze dryer trays for your chosen shelf stack. Trays are sold separately.
