Pfeiffer HiScroll 6 Vacuum Pump

Description

Pfeiffer HiScroll 6 Vacuum Pump is a completely dry & oil-free scroll vacuum pump which matches perfectly with the CryoDry CD 8 freeze dryer.

With a pumping speed of 6.1m³/hr and ultimate vacuum of 1.5×10^-2 mbar. Low noise level, minimal vibrations and compact design, ideal also for use in laboratories. Low operating costs thanks to the highest quality, short maintenance times and long maintenance intervals.



SPECIFICATIONS SHEET



Efficiency

Pfeiffer vacuum pumps are 15% more efficient than comparable products, offering significant operation cost savings whilst also offering the highest performance on the market. Our pumps are characterized by their pumping speed when evacuating against atmosphere.



Whisper Quiet

HiScroll pumps are extremely quiet at <48 dB(A) and <42 dB(A) in stand-by mode. Their low-vibration operation and compact design make them ideal for use in quiet working environments.



High Process Safety

For safe use, the hermetically sealed HiScroll features a check valve.



High Water Vapour Tolerance

The two stage gas ballast valve ensures high water vapour compatability which is key for freeze drying.



Quality

The proven quality of Pfeiffer Vacuum products assures a long service life, market leading service interval and lowest cost of ownership.



Pfeiffer HiScroll 6 Vacuum Pump Specifications:

Specifications	HiScroll 6	HiScroll 12
Pumping Speed	6.1 m³/h	12.1 m³/h
Ultimate Vacuum	0.015 mbar |	0.006 mbar
Power	100 – 127 / 200 – 240 V AC (±10 %), 50/60 Hz

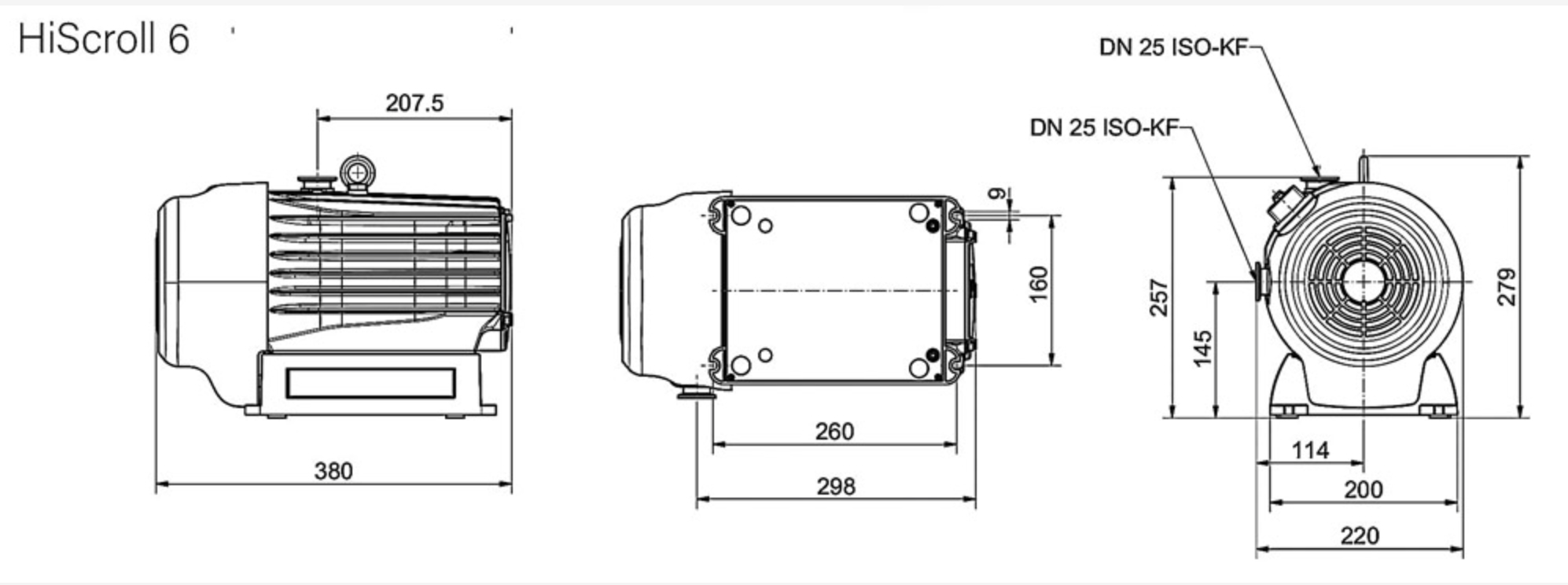

Dimensions D x W x H	380 x 220 x 279 mm	419 x 265 x 322 mm
Noise Level dB(A)	<48	<47
Inlet Flange	DN 25 ISO-KF
Weight (kg)	19	24
Cooling System	5 – 40 °C
Certification	CE / UL
