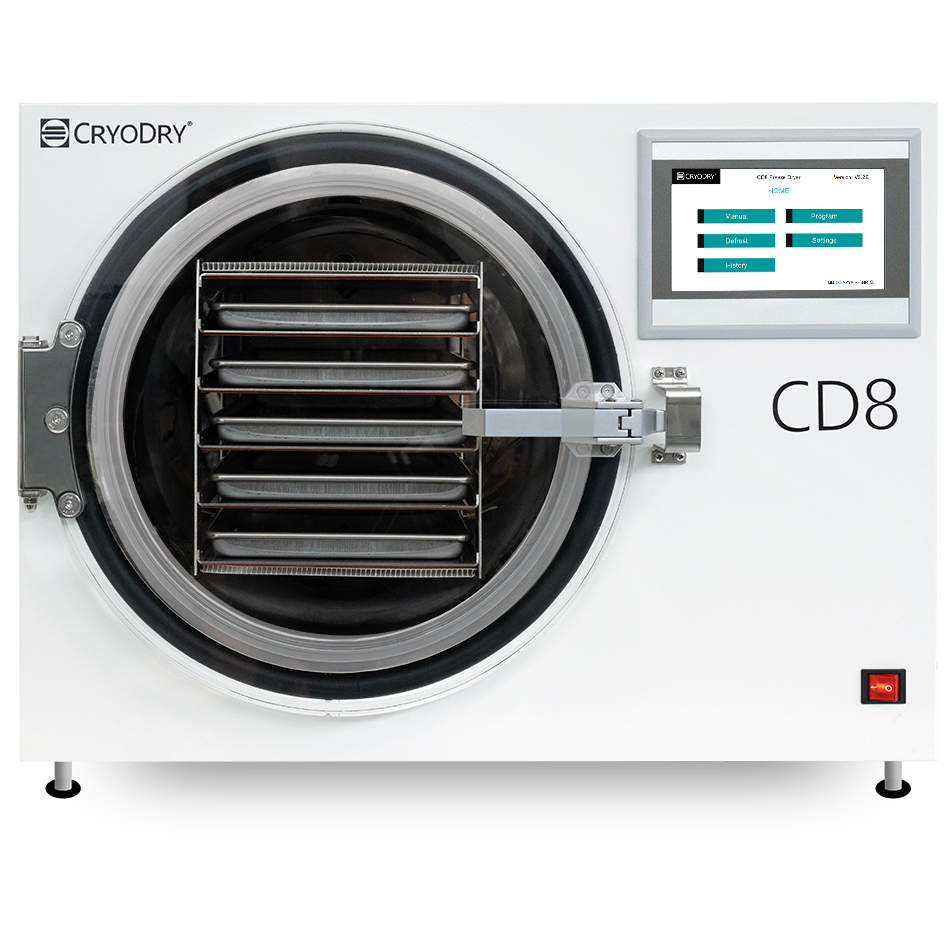

CryoDry CD8 Freeze Dryer with Value Oil Pump

Description

The CryoDry® CD8 freeze dryer is a versatile and user-friendly freeze dryer that delivers full control over the freeze-drying process. Perfect for home use and also for commercial, pharmaceutical or the laboratory too.

With a manual or automatic operation mode this freeze dryer can be easily programmed with 12 programs each with up to 16 steps, for customizable recipes.  The CD8 comes with 4 preset programs.

The CD8 boasts 8 kg ice capacity, with up to 4 kg of ice removed from the product per 24 hours.

All-in-one-Process – In the past users have been forced to freeze their product in poorly controlled environments (such as deep freezers), and then transfer into a lyophiliser for drying. This causes undesirable ice formation and potentially product transfer related melt-back – both of which negatively impact on drying behaviour, performance and, ultimately, product quality.
Autodry – The new and innovative autodry mode is perfect for beginners or users who do not want to setup their own drying programs. The program uses an advanced algorithm to determine drying progress. It automatically adapts drying parameters and identifies process end.

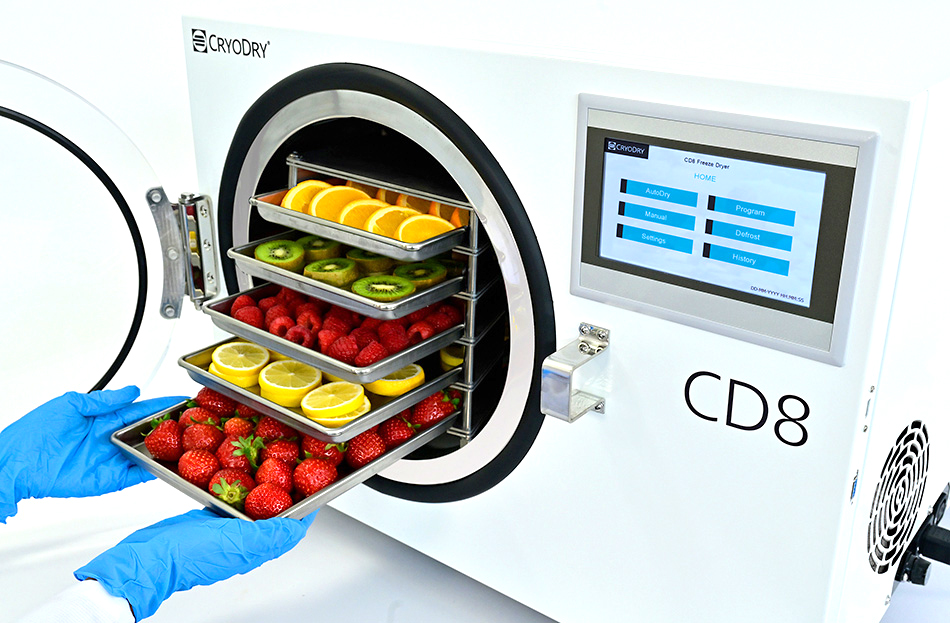

Easy-Load – Easy to load and unload cupboard style chamber.
Fast – Cooled and heated shelves for fast freezing and even faster drying. Typical time savings of more than 60% (based on in-house study, compared with passive systems)

Interchangable Shelves

There are five electrically heated shelf options of  9, 7, 5 , 3 or 1 shelf  with shelf distances from 16mm to 188mm. Simply unplug your existing shelf unit and plug in a different one with the simple plug and play interchange.  So whether you are doing a run with small portions, candy, or higher larger portions there is a tray configuration to suit.
The CD8 freeze dryer comes standard with 5 shelf unit and 5 stainless steel trays, which are durable and easy to clean.  Shelf stack configurations can be purchased as accessories.

Choose from five shelf stack options:

9 Shelf Stack – for drying of liquids

7 Shelf Stack – for high capacity use with small product

5 Shelf Stack – high capacity, space saving, optimal air circulation (standard with CD8 freeze dryer)

3 Shelf Stack –

1 shelf Stack –

Natural Refriferant

Use of R290 refrigerant is environmentally friendly with minimal carbon footprint and ultra llow greenhouse warming potential.  Guaranteed long term availability unlike ozone depleting CFC and HC.It is easy and affordable to service.

Pump Options

There are 4 available pump options, 2 oiled and 2 oil less scroll pump. The strong door seal allows usage of smaller quieter vacuum pumps which in turn reduces power consumption and less noise.

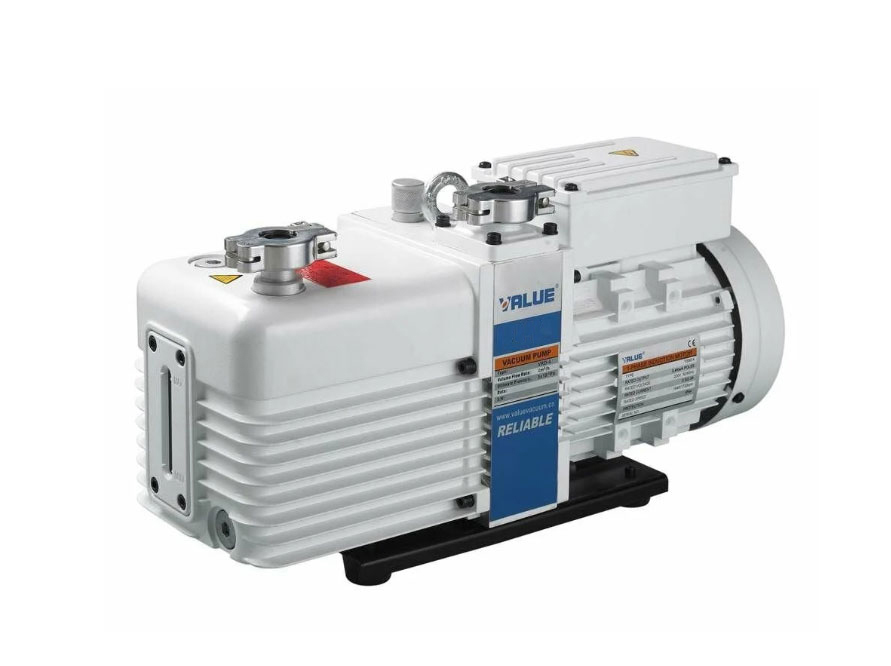

This option is with the CryoDry Value Pump.

2 Year Warranty and Support

CryoDry offer a 2 year warranty with technical assistance and servicing available in New Zealand and Australia.

Globally Certified For Electrical And Food Safety

• Globally Certified: Australian & New Zealand RCM, European CE & North American cUL US certification.
• HACCP Food Safety Certified

CD8 Freeze Dryer Brochure

https://cryodry.biz/wp-content/uploads/2024/07/CryoDry-Gen2-CD8-Brochure-.pdf

CRYODRY CD8 FREEZE DRYER MACHINE FEATURES /SPECIFICATIONS:

Interchangeable shelf configurations	Simple shelf changeover to accommodate various applications
Benchmark ice capacity	Large batches and long defrost intervals for maximum uptime
Powerful colour touchscreen controller	• 12 Easy-to-program recipes which can be named containing up to 16 steps. • Manual operation • autodry • Vacuum Oven Mode
PC interface	USB-A, USB-B for data downloads and software updates
Compact design	Easy to load and unload. Uses minimal bench space
Ozone friendly natural refrigerant	Minimal carbon footprint and ultra-low greenhouse warming potential (GWP). Guaranteed long term availability (unlike ozone depleting CFC and HCFC)
Low Maintenance	Easy and cost effective service
Build quality	High-end refrigeration and electronic components. Solid state relays

Refrigeration
Condenser Performance	4 kg per 24 hours
Defrost Function	Shelf heating
Ice Condenser Capacity	8 kg
Minimum Ice Condenser Temperature	-45 °C
Refrigerant	R290
Total Condenser Volume	11 litres
Typical Product Capacity	9.6 kg at 80% moisture
Vacuum
Ultimate Vacuum	1.5 x 10-1 mbar
Shelves
Number of Shelves	5
Shelf Stack Options	9, 7, 5, 3 and 1 shelves
Inter-shelf Distance	9 Shelves 16 mm
	7 Shelves 22 mm
	5 Shelves 33 mm
	3 Shelves 59 mm
	1 Shelf 188 mm
Tray Size	200 x 450 x 15 mm
Minimum Shelf Temperature	-40 °C
Maximum Shelf Temperature	+60 °C
Power Requirements
Electrical	AC 120V, 14A 50/60Hz
	AC 220-240V 8A 50/60Hz (Not for UL-mark)
	Other voltages on request
Maximum Vacuum Pump Current:	3A
Interfaces
Interfaces	USB-A, USB-B
Size and Weights
External Dimensions (DxWxH)	770 x 748 x 507 mm
Weight	87 kg
Noise Level (without vacuum pump)	54 dB(A)

INCLUDES: CryoDry Stainless Steel CD8 Freeze Dryer,  VRD8 Oiled Vacuum Pump, Stainless Steel Trays (set of 5), Mylar Bags (50), Oxygen Absorbers (50), Owners Manual, Power Cords.



https://cryodry.sharepoint.com/sites/CryoDryDistributorPortal/_layouts/15/stream.aspx?id=%2Fsites%2FCryoDryDistributorPortal%2FShared%20Documents%2FMarketing%2FVideos%2FAutomatic%20Operation%20Guide%20%2D%20How%20to%20use%20the%20Controller%20of%20the%20CD8%20%2DSmaller%20file%20size%2Emp4&referrer=StreamWebApp%2EWeb&referrerScenario=AddressBarCopied%2Eview%2Edce26023%2Dfb0b%2D47de%2D9991%2D620afa3cbaa4

Pre orders essential.

We are accepting orders for our next shipment now.

Please enquire for more details.
